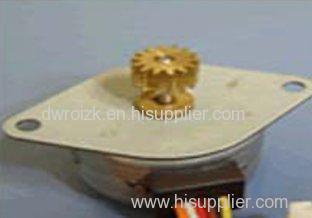

PM Stepper Motor PM25 500V AC for one minute

Product No.: N200867164926

General Specifications

Step Accuracy  ±7%

Temperature Rise  80 Max

Ambient Temperature Range  -20~+50

Insulation Resistance  100MΩMin,  500VC DC

Dielectric Strength  500V AC for one minute

Features:

1) Product name: PM step motor

2) Frame sizes: 20mm, 25mm, 28mm, 30mm, 35mm, 42mm

3) Voltage: 5V, 12V, 13V, 24V

4) Step angle: 5.625°, 7.5°

5) Ratio: 1:19, 1:24, 1:25, 1:30, 1:64, 1:85.25

6) Our step motors transform impulse signals into angular or linear displacement for
industrial automation, industrial manipulators, home appliances, and office appliances applications

Electrical  Specifications

Model	Step    angel   ( °)	NO.  of phase	Rate Voltage (V)	Rate Current (A)	Phase Resistance ( Ω )	Phase Inductance (mH)	Holding Torque (g.cm)	Detent Torque
PM25S-048-01	7.5	4	20	0.4	50	11	200	45
PM25S-048-02	7.5	4	6.5	0.65	10	3	200	45
PM25S-048-02B	7.5	2	5	0.5	10	4	200	45
PM25S-048-03A	7.5	4	12	Mr. Xiao Tel: 86-519-88381518 Contact to this supplier Related Search Pm Motor    Stepper Motor    Pm Dc Motor    Pm Step Motor    Dc Pm Motor    Stepper Gear Motor    More>> Find more related products in following catalogs on Hisupplier.com Machinery & Industrial Supplies >> Hardware & Tools >> Machining Tool Related Products DIY mini circular saw 9901 Multi-purpose Drill Sharper for drill bits knife scissor 9902 Multi-Purpose Electric Drill Sharpener 9903 DIY mini circular saw 9901 Multi-purpose Drill Sharper for drill bits knife scissor 9902 Multi-Purpose Electric Drill Sharpener 9903 × Company Info Changzhou Chuangwei Motor & Electric Apparatus Company [China (Mainland)] Business Type:Manufacturer City: Changzhou Province/State: Jiangsu Country/Region: China (Mainland) View Contact Details You May Like: prev nema 11 stepper motor 2 phase stepper mo... single power supply multiple output powe... stepper motor controller simple stepper ... stepper motor driver stepper motors simp... stepper motor driver step motor driver s... stepper motors step motor driver stepper... nema 14 stepper motor cnc stepper motors... nema 16 stepper motor 2 phase stepper mo... nema 17 stepper motor hybrid stepper mot... nema 17 stepper motor hybrid stepper mot... NEMA23 57BYG 2 Phase Hybrid Stepper Moto... NEMA23 57bygh 2 Phase Hybrid Stepper Mot... NEMA34 85BYGH 2 Phase Hybrid Stepper Mot... Nema34 86byg 2 Phase Hybrid Stepper Moto... Nema43 110bygh 2 Phase Hybrid Stepper Mo... PM42 500VC DC PM Stepper Motor PM35 PM Stepper Motor With 100MMin 500VC... PM Stepper Motor PM25 500V AC for one mi... PM20 PM Stepper Motor CE And RoHS Approv... PM Stepper Motor PM15 For Industrial Aut... Power Supply Single Output 500W Power Supply Single Output 350W Power Supply Single Output 240W Switching Power Supply Single Phase Outp... 100WPower Supply Single Output CE 2A/115V 1A/230V Power Supply Single Outp... DC Switching Power Supply Single Output ... Power Supply 40W Single Output 1.2 130mm NEMA34 3phase Hybrid Stepper M... 1.257mm NEMA23 3 phase Hybrid Stepper Mo... 1.286mm NEMA34 3phase Hybrid Stepper Mot... 1.2110mm NEMA42 3phase Hybrid Stepper Mo... High Torque 42HSG Gearbox Stepper Motor Low Noise 57BYGH Gearbox Stepper Motor Low Vibration 86BYGH Gearbox Stepper Mot... 35BHM NEMA14 2 Phase 6 Wires Hybrid Step... 20BH NEMA 8 2 Phase 4 Hybrid Hybrid Step... NEMA 11 28BH 4 Phase 28mm Square Hybrid ... Delta 500V 24BLDC DC Brushless Motors us... 36BLDC Motor DC Brushless Motor used in ... 100MMin 500V DC Brushless Motors next Product (41) Others (41) Printable Page   Bookmark this page Sitemap   XML   About HiSupplier   Help Center    Customer Service   Friend Links   Site Map   Archives Browse by: China Suppliers - Hot Products - Products Directory - Offers Directory - Suppliers Directory - Buyers Directory Language Option: العربية - Nederlands- Français- Deutsch- Italiano- 日本語- 한국의- Português- Pусский- Español Copyright © HiSupplier.com Online Inc. All Rights Reserved.
